Portable 1000w / 1500w / 2000w Handheld Fiber Laser Welding Machine For Metals Welding
Machine video: https://youtu.be/2KwuyNTPDvs
Advantages of Portable 1000w / 1500w / 2000w Handheld Fiber Laser Welding Machine For Metals Welding:
1. Powerful welding ability: Max 2000 watt fiber laser, which can support effetive welding stainless steel Iron 5mm and Aluminum 4mm.
2. More flexible: with 6m fiber cable (12m optional) ,which enabe outdoor welding or long-distance welding.
3. Fast welding speed, 2~10 times faster than traditional welding.
4. The welding seam smooth and beautiful, large depth, small taper, don’t need polish, save time.
5. No deformation or welding scar, firm welding of the workpiece.
6. Laser welding has less consumables, low energy consumption and long service life.
7. Safe, easy operation and more environmentally operation without training.
Applications of Portable 1000w / 1500w / 2000w Handheld Fiber Laser Welding Machine
For Metals Welding:
The handheld laser welding machine features the best fiber laser beam, high quality welding seam, high welding speed and without consumables. The handheld laser welder is widely used in welding thin stainless steel, carbon steel, copper, brass, gold, silver, iron, aluminum, other sheet metals and metal tubes. The portable handheld laser welding machine will take over the traditional argon arc welding and electric welding technology.
Technical Parameters of Portable 1000w / 1500w / 2000w Handheld Fiber Laser Welding Machine For Metals Welding:
| Machine model | QCW-500 | QCW-750 | QCW-1000 | QCW-1500 | QCW-2000 |
| Max laser power | 500W | 750W | 1000W | 1500W | 2000W |
| Laser source | Raycus /JPT/ MAX brand from China | ||||
| Beam quality | 1.3m² | ||||
| Laser wavelength | 1080±5nm | ||||
| Laser frequency | 1-10000HZ | ||||
| Welding pool | 0.02-3.0mm | ||||
| Working mode | Continuous / modulation | ||||
| Continous working time | 24 hours | ||||
| Aiming and positioning | Red light positioning | ||||
| Controlling system | WH professional welding controlling system | ||||
| Welding head | WH wobble hand torch welding head (QBH interface port) with automatic wire feeding | ||||
| Welding speed range | 0-10m/min | ||||
| Cooling method | Industrial constant temperature water cooling | ||||
| Water chiller | S&A / DOLUYO brand 2.0P from China | ||||
| Electronic power supply | Taiwan MEAN WELL electronic power supply | ||||
| Protective gas | Argon / Nitrogen/Co2 (depends on materials) | ||||
| Power required | AC220/380V±10%, 50/60Hz | ||||
| Fiber length | Standard 6m, maximum 30m, 50um | ||||
| Lifetime | 100,000 hours | ||||
| Working temperature | 15~35℃( <70% non-condensing ) | ||||
| Warranty period | 2 years | ||||
| Lead time | 7-10 working days after receiving advanced deposit | ||||

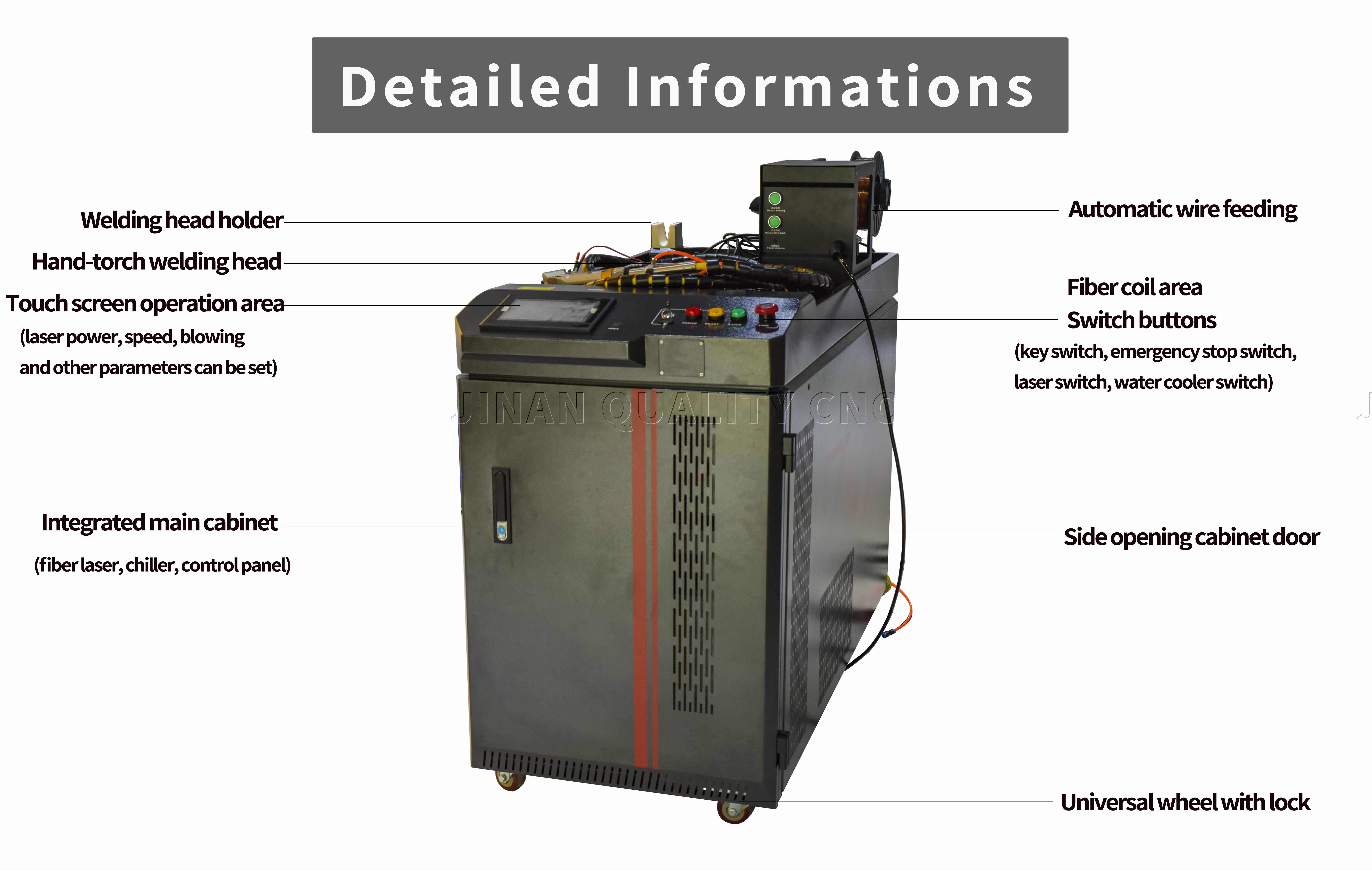

Configurations and main parts of Portable 1000w / 1500w / 2000w Handheld Fiber Laser Welding Machine
For Metals Welding:

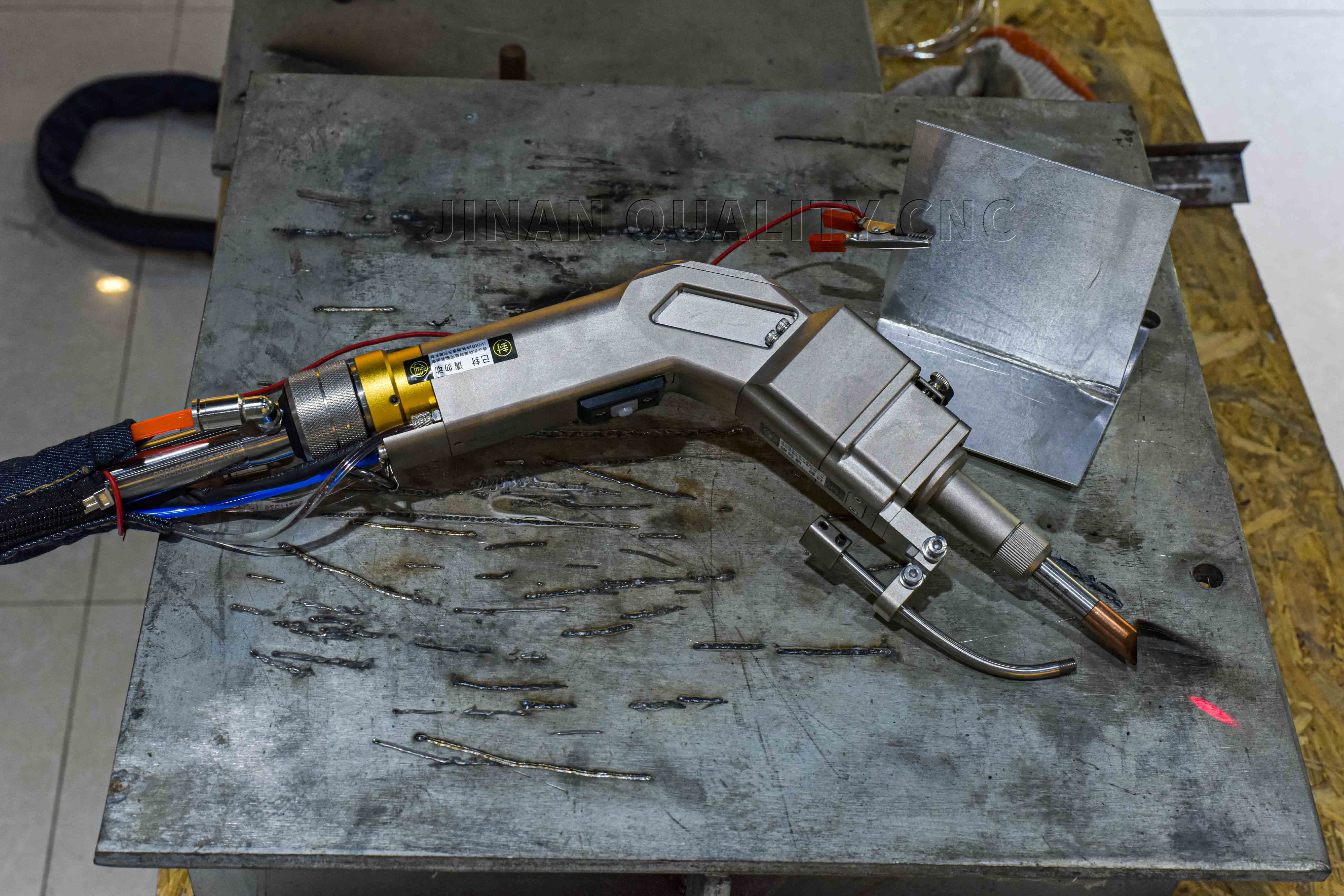

1. Welding head with auto feeding wire system:
2. Fiber cable 6m, more convient for long-distance welding:
3. Max 2000W fiber generator with S&A Industrial constant temperature water cooling
About us:
Q1: How To Operate Handheld Laser Welding Machine?
The handheld laser welding machine is very easy operation, welding
seam perfect, fast welding speed and without consumables. The
handheld laser welder is widely used in welding thin stainless
steel, iron plate, aluminum plate and other metal materials. The
handheld laser welding machine can perfectly replace the
traditional argon arc welding and electric welding technology.
Q2: This Is The First Time I Use This Kind of Machine, Is It Easy
to Operate?
We will send you manual and guide video in English, it can teach
you how to operate the machine. If you still can not learn how to
use it, we can help you by "Teamviewer" online help software. Or we
can talk by phone, email or other contact ways.
Q3: If The Machine Has Problem In My Place, How Could I Do?
We could send free parts to you in warranty period if machines have
any problem under "normal use".
Q4: What's The Guarantee, In Case The Machine Breaks Down?
The machine has 3 years guarantee.
Q5: How About The Documents After Shipment?
After shipment, we will send all original documents to you by DHL,
including Packing List, Commercial Invoice, B/L, and other
certificates as required by clients.
Q7: How Long Is The Delivery Time?
For standard machines, it would be 7-10 days; For non-standard
machines and customized machines according to client’s specific
requirements, it would be 15 to 30 days.
Q8: How's The Payment?
Telegraphic Transfer (T/T).
Q9: Do You Arrange Shipment For The Machines?
Yes, we will arrange shipment for you for FOB or CIF price. For EXW
price, clients need to arrange shipment by themselves or their
agents.
|
|
