    2 Spindles CNC Router Machine For Wood CNC Carving Machine Long Life

    Ask Lasest Price
    Brand Name : JINAN QUALITY CNC
    Model Number : QCR1224-2
    Certification : CE CO
    Price : 5300--7000USD
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 100 SETS per one month
    • Product Details
    • Company Profile

    2 Spindles CNC Router Machine For Wood CNC Carving Machine Long Life

    2 Spindles CNC Router Machine For Wood CNC Carving Machine 2 Spindles


    Descriptions of 2 Spindles CNC Router Machine For Wood CNC Carving Machine 2 Spindles


    2 Spindles CNC Router Machine For Wood CNC Carving Machine 2 Spindles is a low cost CNC router machine with 1200 *2400 mm size, Which is customized for changing the tools within 2-4 pieces. It's not only economic, but also can realize automatic tool change, save the time of manual tool change and improve the working speed and precision. And it can cut two work pieces at the same time to reach the same effect. What's more, this wood CNC machine could mirror-sculpture (same engraving path, but in opposite directions) by changing the cables, which is widely used for door making.

    2 Spindles CNC Router Machine For Wood CNC Carving Machine 2 Spindles QCR1224-2 Features:

    1. CNC Router Machine bed is heavy-duty and welded by the thick wall steel seamless tube and processed by high temperature tempering treatment and vibrating stress relief(VSR) to reduce residual stress,good stability,no deformation.

    2. CNC Router Machine adopts dual 86-450b stepper motor drive for Y-axis, moving stably with high speed.

    3. Using Chinese well-known Changsheng brand of water-cooled brushless spindle with two direction water-cooling system, low noise, strong cutting ability and high efficiency to ensure the long time working.

    4. UsingTaiwan Hiwin linear square guide way, double row four row slider, high precision, long life time.

    5. Using the higher precision Rack and pinion transmission for X and Y axis, ball screw transmission for Z-axis, ensuring the machine fast speed and higher precision.

    6. Auto oil lubrication to make the maintenance more easy.

    7. Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing.

    8. Emergency stop button, ensuring the operation safe.

    9. Good software compatibility, suitable for Type3, Artcam, Castmate, Ucancam, JDpaint, WENTAI and others.


    Applications of 2 Spindles CNC Router Machine For Wood CNC Carving Machine 2 Spindles

    2 Spindles CNC Router Machine For Wood CNC Carving Machine 2 Spindles can process not only 2D flat projects such as : carve ,engrave , mill and cut characters, letters, pattern, but also 3D relief and embossment on almost all nonmetals including all kinds of woods, solid wood, bamboo, MDF, acrylic, PVC, organic glass, PCB, plastic , foam and others.

    1. Furniture / Woodworking industry: Chair, door, window, bed, cabinet, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs,art murals, headboards, redwood classical and antique furniture, exquisite European furniture, flat panel type furniture carving, decorative products sculpture,Wave Plate, man-made marble cabinet table surface or other decorations carving.

    2. Advertising Industry: advertising identification, Billboard, signage, badges, logo, company plate, signs, emblem, display panels, fair signs, building numbers, signs of decoration, literal hole cutting etc.; 3D character cutting, acrylic cutting, LED/neon channel, lightbox.

    3. Artwork Industry: Solid wood ornaments, souvenirs, gifts, instrument 3D surface engraving, photo frame, Wood crafts, gift box, jewelry box and other exquisite art crafts.

    4. Electronic Industry: circuit board, insulation mterial, LED display screen and PCB engraving and cutting.


    Technical Parameters of 2 Spindles CNC Router Machine For Wood CNC Carving Machine 2 Spindles


    Item: QCR1224-2CNC router mahine 1224 with 2 separated spindles

    Equipment size

    (length * width * height) mm

    5000*2800*1800mm

    Working size(X*Y*Z) mm1200*2400*350mm
    SpindleBrandChangsheng brand from CHINA
    Rate & sets3.0kw * 2 sets
    Cooling modeWater-circulating cooling
    Speed24000rpm/Min
    Motor & Drive SystemMotor

    Stepper motor 86-450B

    Drive

    Leadshine driver 860H

    Amount6 sets (dual motors for Y axis) + additional 2 sets for rotary devices
    Frequency inverterBrandFULING
    Power & sets3.7KW * 2 sets
    Operating systemWeihong NK105
    StructureTable structureAggravated bed (tempering treatment)
    RailTaiwan Hiwin NO.20 square rails
    X transmission

    Germany WMH Herion

    1.25M high precision helical rack

    Y transmission

    Germany WMH Herion

    1.25M high precision helical rack

    Z transmissionTaiwan TBI ball screw
    Working tableVacuum adsorption working table
    Water-cooling vacuum pump for adsorption5.5kw (air- cooling vacuum pump for optional )
    Lubrication systemManual centralized lubrication
    ReducerHelical precision gear box drive & belt
    Wire & cable

    Shanghai ECHU cable with high-flexibility and shielding function

    Electric applianceCHINT appliance

    Max

    Speed


    IdleX axis10-17m/Min(30 alarm)
    Y axis10-17m/Min(30alarm)
    Z axis1m/Min
    WorkingX axis5-15m/MinDifferent speeds for different materials, tools and processes requirements
    Y axis5-15m/Min
    Z axis1m/Min
    PrecisionProcess±0.02mm
    Reposition±0.05mm
    Command codeG code
    software compatibilityType3, Artcam, Castmate, Ucancam, JDpaint, WENTAI,Mastercam, Powermill and others
    Working voltageAC 380V/220V 50HZ
    Running Environment Temperature0 - 45 Centigrade
    Relative Humidity30% - 75%

    Weight Net/Gross

    1100KG/ 1300KG

    Optional PartsMach 3 / Richauto A11 DSP control system
    Dust collector
    Mist-cooling system
    Leadshine servo motors / 750w Yaskawa Servo motors

    Machine Parts of 2 Spindles CNC Router Machine For Wood CNC Carving Machine 2 Spindles

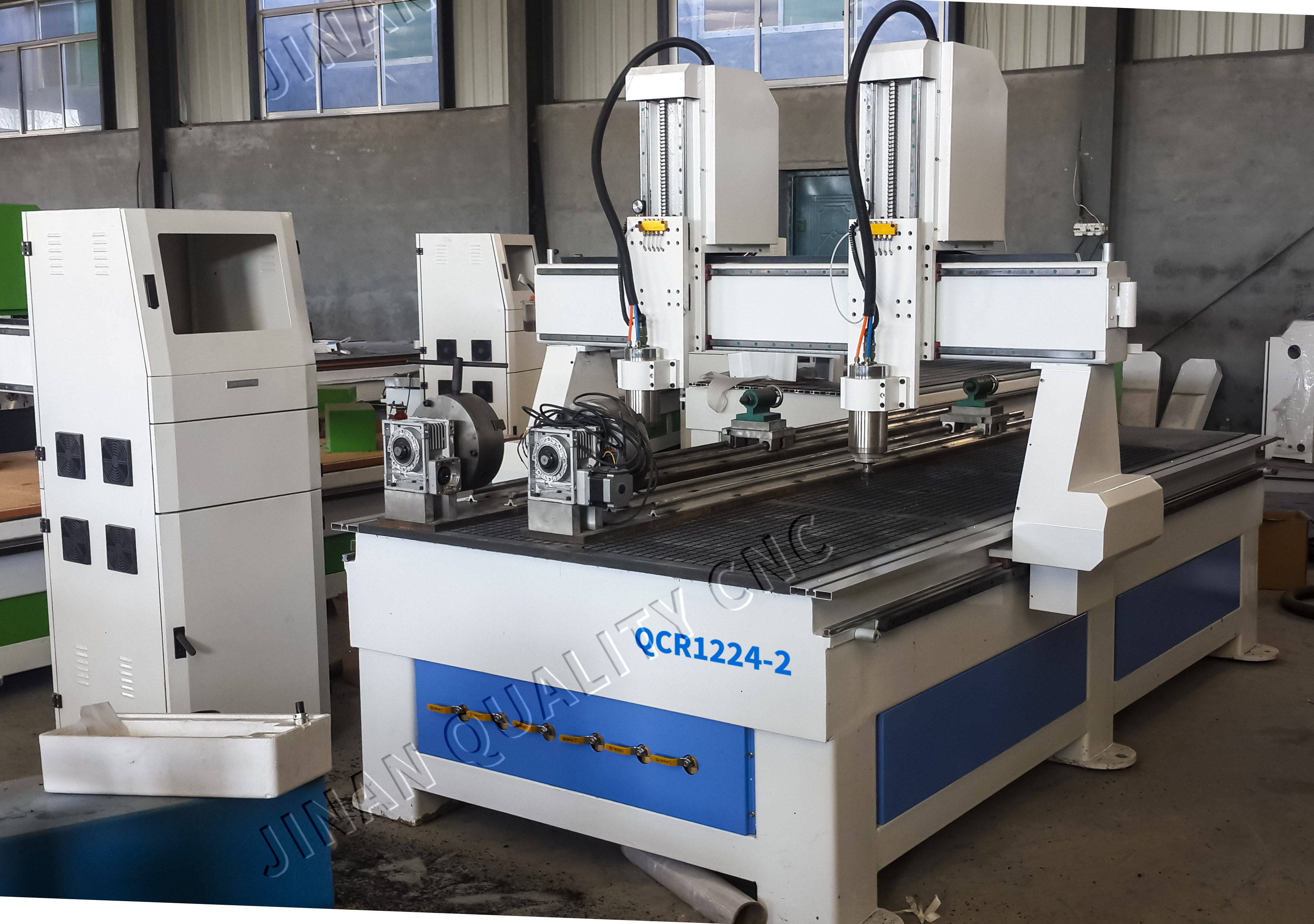

    2 Spindles CNC Router Machine For Wood CNC Carving Machine 2 Spindles in factory:

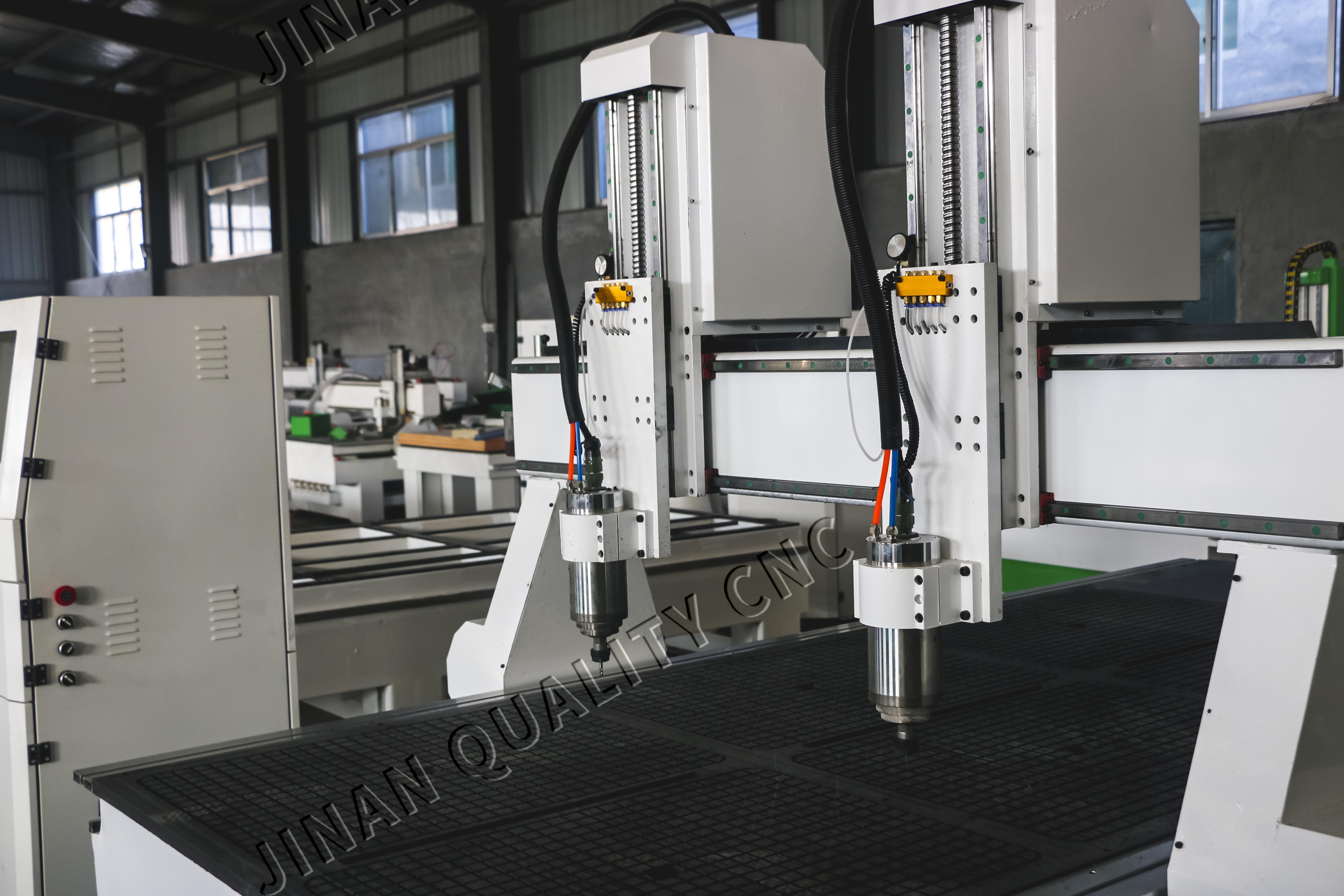

    Double separated spindles on 2 Spindles CNC Router Machine For Wood CNC Carving Machine 2 Spindles :

    Rotary devices on 2 2 Spindles CNC Router Machine For Wood CNC Carving Machine 2 Spindles :


    Our Service of 2 Spindles CNC Router Machine For Wood CNC Carving Machine 2 Spindles

    1. Installation and Debugging:

    Customers can get detailed operation manual and instruction video of our CNC stone router. We will make sure that customers can operate machines skillfully.


    2. Training: Customers can get free technical training. Mainly training are as follow:

    1). Software operation.

    2). Machine operation and maintenance.

    3). Instruction of technical parameters, as well as their setting ranges.

    4). Solutions for common problems.

    5). Training -free in our factory.


    3. Equipment Maintenance:

    1). Life-time free technical consultant and software updating service.

    2). Life-time customer Service responding in 24 hours.


    4. Guarantee:

    The guarantee period shall be 36 months counting from the date on which the machine arrives destination port. Except the damage artificially, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of 36-month quality period, the parts required to repair or change, if any, we offer the cost price (agent price ) with the parts.

    5. Standard Package List as below:

    2 Spindles CNC Router Machine For Wood CNC Carving Machine 2 Spindles QCR1224-2

    1 set
    Tool cutters / kits

    20 pics

    Water pump2 sets
    Collets4 pics
    Machine power cable1 pic
    Proximity Limit for spare2 sets
    Water-cooling vacuum pump for adsorption 5.5kw1 set
    Tool box1 set (with spanners,U disk for controlling software parameters, working samples and so on)

    About us:


    Q1: How about warranty?

    A1:

    A1: The guarantee period shall be 36 months counting from the date on which the machine arrives destination port. Except the damage artificially, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of 36-month quality period, the parts required to repair or change, if any, we offer the cost price (agent price ) with the parts.

    2. We offer life-time technical technical consultant ,software updating service and life-time customer Service responding in 24 hours for free service.

    3. Afterservice person in charge : Skype / whatsapp/ Wechat/ Tel: +8613176441785 Carol zhu.


    Q2: What's the delivery time?

    A2: 5-8 working days to delivery port.


    Q3: What's the usually delivery terms?

    A3: FOB, CIF, DDP, Exworks will be OK.


    Q4: What's the MOQ?

    A4: 1 set.


    Q5: What's the delivery port?

    A5: Usually Qingdao port, also we can deliver machines to Shanghai port and Guangzhou.


    Q6: What's the packing?

    A6: Iron Pallet and export- standard Plywood cases .


    Q7: Can you place OEM orders?

    A7: Yes,OEM and ODM orders are acceptable. We can manufacture machines according to your requirement with your design,logo,color,materials or brand information.


    Q8:Where is your factory located? How can I visit there?

    A8:Our factory is located in JiNan City, Shandong Province, China, about 2 hours from Beijing, 3.5 hours from Shanghai and 10 hours from Guangzhou by high-speed train.
