Factory Price Economic Automatic Tool Changer CNC Router For Sale With 4 Heads
Descriptions of Factory Price Economic Automatic Tool Changer CNC Router For Sale With 4 Heads:
Factory Price Economic Automatic Tool Changer CNC Router For Sale With 4 Heads is our new design of simple ATC router machine with working size 4' x 8' , which is mainly used for processing flat panel furnitures, official furnitures, wooden doors, cabinets, plates, tables, chairs.
Factory Price Economic Automatic Tool Changer CNC Router For Sale With 4 Heads QCR1325 Features:
1. CNC Router Machine bed is heavy-duty and welded by the thick wall steel seamless tube and processed by high temperature tempering treatment and vibrating stress relief(VSR) to reduce residual stress,good stability,no deformation.
2. CNC Router Machine adopts JMC 3HSS2208H Hybrid step servo motors and drivers with dual servo motor for Y-axis, moving stably with high speed.
3. Using Chinese well-known HQD, CC or JST brand of air-cooled brushless spindle with two direction air-cooling system, low noise, strong cutting ability and high efficiency to ensure the long time working.
4. UsingTaiwan Hiwin linear square guide way, double row four row slider, high precision, long life time.
5. Using the higher precision Rack and pinion transmission for X and Y axis, ball screw transmission for Z-axis, ensuring the machine fast speed and higher precision.
6. Auto oil lubrication to make the maintenance more easy.
7. New design for dust-proof on X axis,keep machine drive clean.
8. Emergency stop button, ensuring the operation safe.
9. Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing.
10. Good software compatibility, suitable for Type3, Artcam, Castmate, Ucancam, JDpaint, WENTAI and others.
11. The woodworking router can work with loading and unloading platforms for increasing working efficiency saving labouring time and cost.
Applications of Factory Price Economic Automatic Tool Changer CNC Router For Sale With 4 Heads:
Factory Price Economic Automatic Tool Changer CNC Router For Sale With 4 Heads can process not only 2D flat projects such as : carve ,engrave , mill and cut characters, letters, pattern, but also 3D relief and embossment on very widely- range materials as below:
1. Almost all nonmetals: all kinds of woods, solid wood, bamboo, MDF, acrylic, PVC, organic glass, PCB, plastic , foam and others.
2. Hard nonmetals (needs water-cooling) : natural marble, granite, bluestone, sandstone, artificial stone, tombstone, headstone , quartz stone ,milestone, memorial stone, ceramic tile, ceramics, jade or jade stone, crystal, glass,Man-made marble and others.
3. Soft metals (needs cutting fluid-cooling) : copper, brass,aluminum composite panels, aluminum plate, aluminum sheet and aluminum parts .
Factory Price Economic Automatic Tool Changer CNC Router For Sale With 4 Heads can process very wide- range materials, so its applicable industries as below:
1. Furniture / Woodworking industry: Chair, door, window, bed, cabinet, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs,art murals, headboards, redwood classical and antique furniture, exquisite European furniture, flat panel type furniture carving, decorative products sculpture,Wave Plate, man-made marble cabinet table surface or other decorations carving.
2. Advertising Industry: advertising identification, Billboard, signage, badges, logo, company plate, signs, emblem, display panels, fair signs, building numbers, signs of decoration, literal hole cutting etc.; 3D character cutting, acrylic cutting, LED/neon channel, lightbox.
3. Artwork Industry: Solid wood ornaments, souvenirs, gifts, instrument 3D surface engraving, photo frame, Wood crafts, gift box, jewelry box and other exquisite art crafts.
4. Electronic Industry: circuit board, insulation mterial, LED display screen and PCB engraving and cutting.
Technical Parameters of Factory Price Economic Automatic Tool Changer CNC Router For Sale With 4 Heads:
| Item:QCR1325 | 1325-4 spindles economic auto tool changer (High standard model) | |||
Equipment size (length * width * height) mm | 3400*2100*1800 | |||
| Working size(X*Y*Z) mm | 1300*2500*200 4x8 feet | |||
| Spindle | Brand | HQD, CC or JST brand Chinese high quality spindle | ||
| Power & sets | 4.5kw *2 sets 6.0KW *2 set | |||
| Cooling mode | Air-cooling | |||
| Speed | 0-18000rpm/Min | |||
| Motor & Drive System | Mode | Hybrid Stepper servo | ||
| Motor | JMC 3HSS2208H Hybrid step servo | |||
| Drive | JMC 3HSS2208H Hybrid step servo driver | |||
| Amount | 4 sets (dual motors for Y axis) | |||
| Frequency inverter | Brand | Fuling | ||
| Power & sets | 11kw *1 set | |||
| Operating system | SHANLONG L1000 system | |||
| Structure | Table structure | Heavy duty aggravated bed (tempering treatment) | ||
| Platform structure | Platform steel frame: square tube 100*100mm Side steel frame: square tube 200*300mm | |||
| Rail | Taiwan Hiwin NO.25 | |||
| X transmission | 1.5M high precision helical gear | |||
| Y transmission | 1.5M high precision helical gear | |||
| Z transmission | Taiwan TBI ball screw | |||
| Working table | Vacuum adsorption table | |||
| Lubrication system | Automatic centralized lubrication | |||
| Positioning cylinder | 3(Y axis)+ 2 (X axis) | |||
| Reducer | Japanese SHIMP reducers | |||
| Pushing bar | Automatic pushing bar when finishing processing | |||
| Vacuum pump | Power | 7.5KW | ||
| Cooling mode | Water circulation cooling | |||
| Dust cleaner / collector | 3.0Kw with 2 collecting bags | |||
| Wire | Shanghai cable | |||
| Wiring standard | CE Wiring standard | |||
| Electric appliance | CHINT appliance | |||
| The electromagnetic valve | Manual | |||
| Cylinder | SDA | |||
Max Speed | Idle | X axis | 15-35m/Min(40 alarm) | |
| Y axis | 15-35m/Min(40 alarm) | |||
| Z axis | 5m/Min | |||
| Working | X axis | 10-20m/Min | Different speeds for different materials, tools and processes requirements | |
| Y axis | 10-20m/Min | |||
| Z axis | 3m/Min | |||
| Precision | Process | ±0.02 | ||
| Reposition | ±0.05 | |||
| Command code | G code | |||
| Working voltage | AC 380V/50HZ | |||
| Weight | Net weight | 2000KG | ||
| Gross weight | 23000kg | |||
| Total power | 16KW | |||
| Available tool shank diameter | Φ3.175-Φ20 | |||

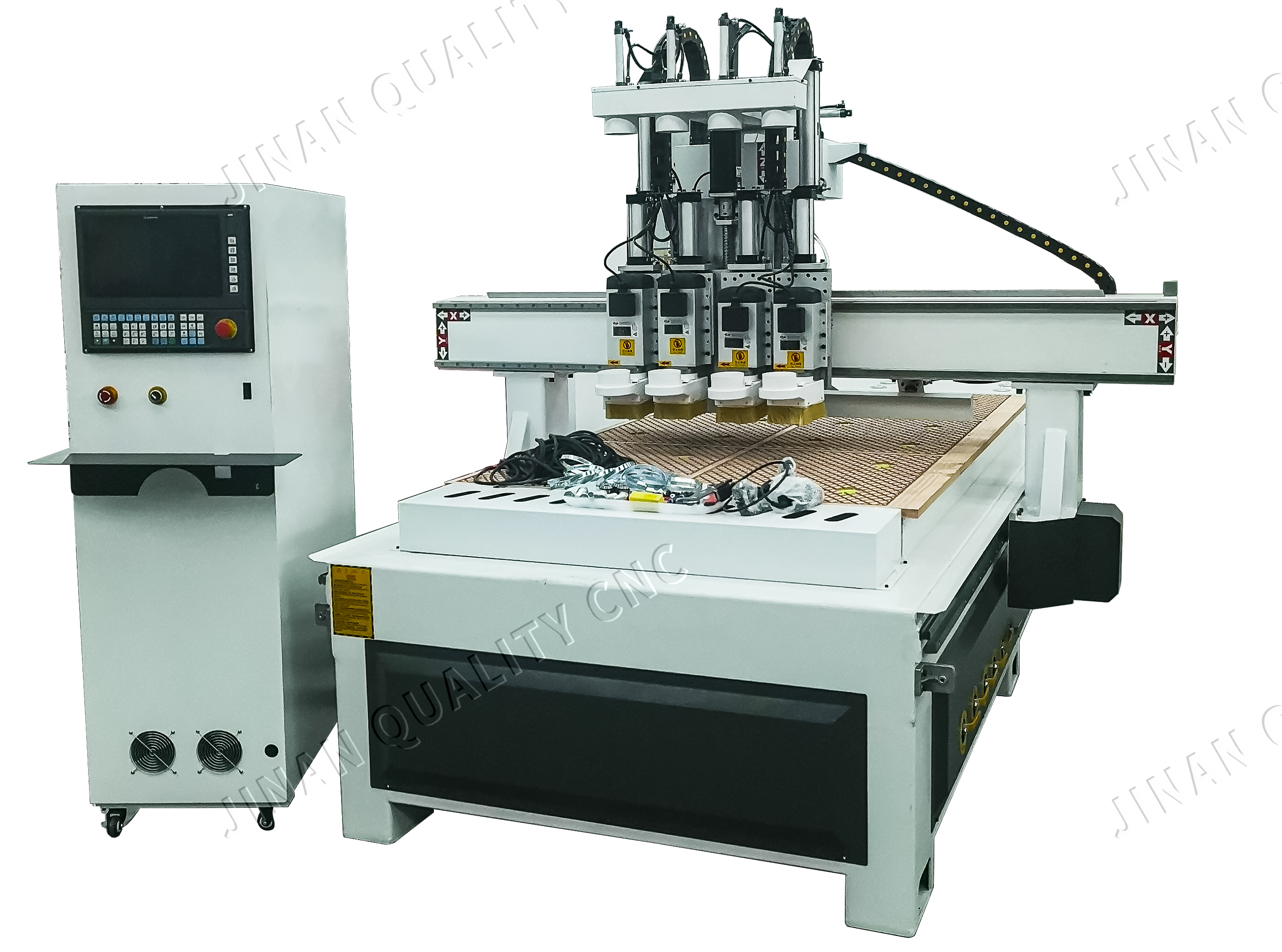

Machine Details of Factory Price Economic Automatic Tool Changer CNC Router For Sale With 4 Heads:

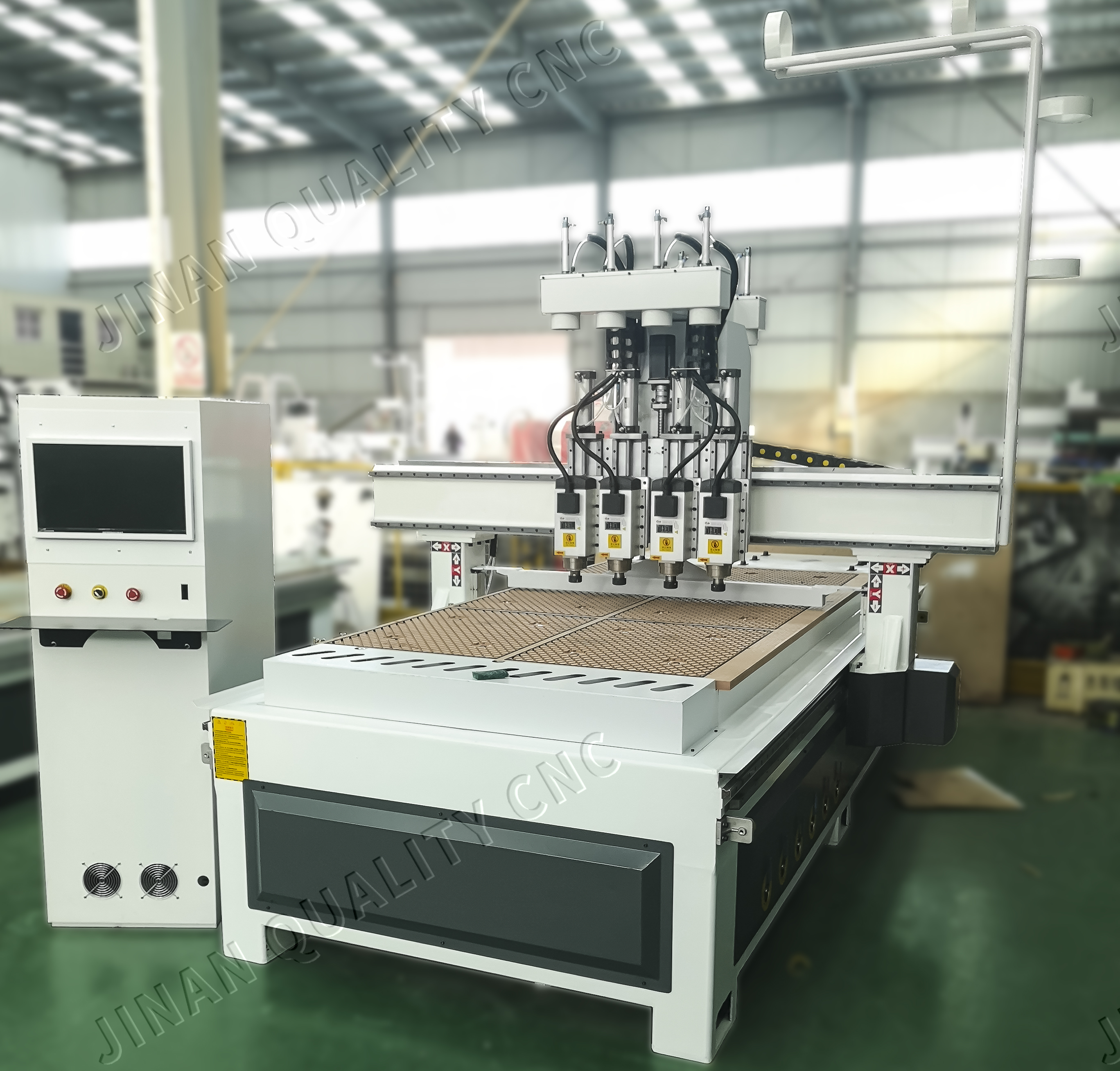

Factory Price Economic Automatic Tool Changer CNC Router For Sale With 4 Heads in factory:
SHANLONG controlling system on Factory Price Economic Automatic Tool Changer CNC Router For Sale With 4 Heads:

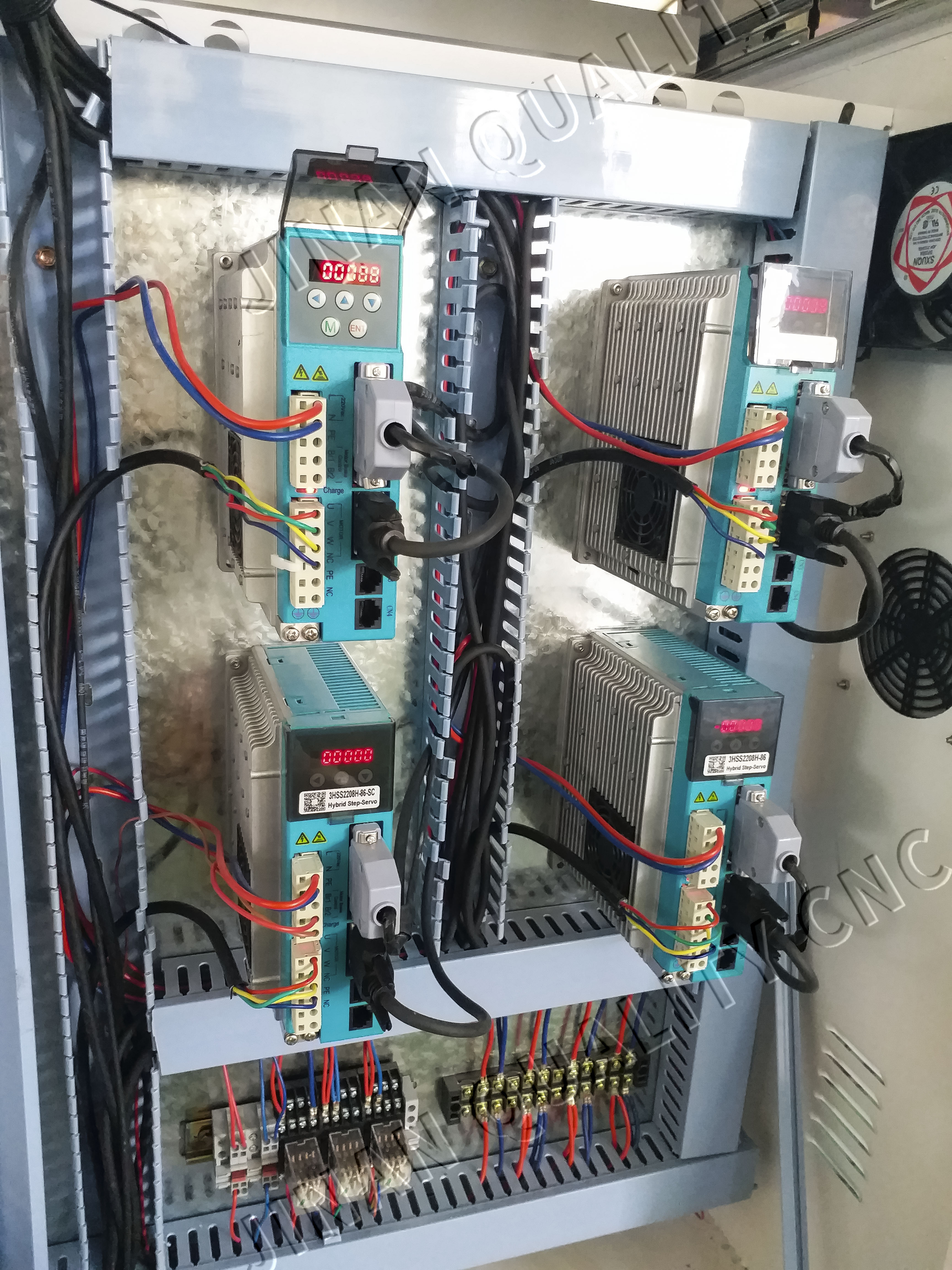

Control carbinet on Factory Price Economic Automatic Tool Changer CNC Router For Sale With 4 Heads:
Our Service of Factory Price Economic Automatic Tool Changer CNC Router For Sale With 4 Heads:
1. Installation and Debugging:
Customers can get detailed operation manual and instruction video of our CNC stone router. We will make sure that customers can operate machines skillfully.
2. Training: Customers can get free technical training. Mainly training are as follow:
1). Software operation.
2). Machine operation and maintenance.
3). Instruction of technical parameters, as well as their setting ranges.
4). Solutions for common problems.
5). Training -free in our factory.
3. Equipment Maintenance:
1). Life-time free technical consultant and software updating service.
2). Life-time customer Service responding in 24 hours.
4. Guarantee:
The guarantee period shall be 36 months counting from the date on which the machine arrives destination port. Except the damage artificially, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of 36-month quality period, the parts required to repair or change, if any, we offer the cost price (agent price ) with the parts.
5. Standard Package List as below:
Factory Price Economic Automatic Tool Changer CNC Router For Sale With 4 Heads QCR1325 | 1 set |
| Tool cutters / kits | 40 pics |
| Vacuum water -pump 7.5kw | 1 set |
| Dust cleaner / collector 3.0kw | 1 set |
| Proximity Limit for spare | 2 sets |
| Collets | 8 sets |
| Tool box | 1 set (with spanners,U disk for controlling software parameters, working samples and so on) |
