Chinese 2022 Factory Supply C9335 C9335A Brake Disc Drum Cutting Lathe Machine for Cars Repairing
General introduction of C9335 C9335A Brake Disc Drum Cutting Lathe Machine for Cars Repairing
This brake disc and brake drum lathe machine is suitable for processing the brake disc and brake drum or hub for almost all cars .We could connect the lathe machine with the brake disc and brake drum by using the wheel screws directly, it has the features of convenient installation, and high processing precision.
Advantages of C9335 C9335A Brake Disc Drum Cutting Lathe Machine for Cars Repairing
1. This brake disc and brake drum lathe machine adopts auto feeding moving cutter via oil-free self-lubricating wear-resistant stainless steel ball screw;
2. Cutters with great rigidity, can achieve rapid processing of milling ( cutting);
3. Adopts professional three-phase asynchronous motor 750w, more powerful and high accuracy;
4. Heavy machine frame, gross weight 160kg, which can ensure that there is no vibration when the machine works at high speed for a long time;
5. The base can be installed universal wheels, the machine can move easily and flexibly.
Technical Parameters of C9335 C9335A Brake Disc Drum Cutting Lathe Machine for Cars Repairing
| Name | Brake Disc Brake Drum Repair Lathe Machine for All Cars |
| Model | C9335A |
| Range cutting diameter | Brake disc: 180mm (Min diameter) - 400mm (Max diameter); Brake drum: 220mm (Min diameter) - 350mm (Max diameter) |
| Rotational speed | 93r/min |
| Axial travel of tool (max.) | For brake disc: 130mm; For brake drum: 100mm |
| Infinitely variable speed feed /feeding capacity | 0.075mm/r |
| Motor | 750w with reducer |
| Machine / Package size (L*W*H) | 775*575*770mm / 805*605*800mm |
| Net / Gross weight | 155kg / 185kg |
| Electrical voltage | 220v ± 10% / single phase, 50hz (60hz optional) |
| Producting time | 7-20 days |
| Warranty | 2 years (no man-made reasons) |
| Machine consumable / wear part | Cutter (one cutter can cut 200-300 pics brake disc) |
| Machine maintenance recommended | 1. Lubricating grease for main shaft gear (once every month); 2. Lubricating oil for transmission industrial chain (once every 2
months); 3. Change reducer gear oil (once every 6-8 months). |

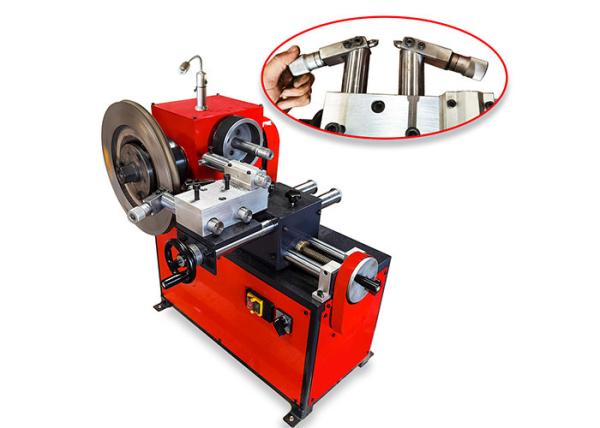

Machine photos of C9335 C9335A Brake Disc Drum Cutting Lathe Machine for Cars Repairing
Details of C9335 C9335A Brake Disc Drum Cutting Lathe Machine for Cars Repairing
Both cutters are adjustable for cutting brake disc:
Main power for rotating, autofeeding diections (1: forward; 0: stop; 2: backword):
Horizontal adjustment for cutting brake drum:
Parts with delivery:
Cutting effect of C9335 C9335A Brake Disc Drum Cutting Lathe Machine for Cars Repairing
|
|
